Body lotion making machine, 200 liters

Model Number: KCM-200L

Power: 34KW

Voltage: 220v/380V 50-60Hz

Mixing speed: 0-63 rpm

Homogenizing speed:0-3000 rpm

Design capacity: 230L

Work capacity: 200L

Material: SUS 316L & SUS304

Material thickness: 5mm&5mm&3mm

Tank’s layer: 3 layers

Oil boiler working capacity: 1o0L

Water boiler working capacity: 150L

Polishing: Inside and exposed parts of the boiler>300 mesh

Application: lotion, cream, paste, ointment, etc.

GET A QUOTE NOW !

Description

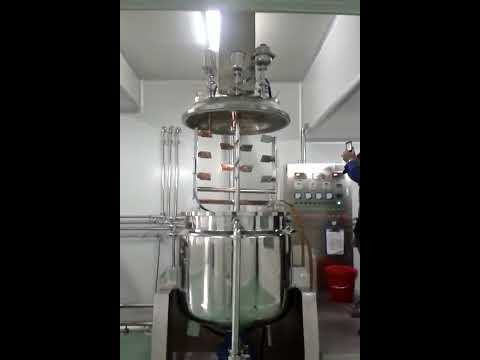

Body lotion making machine, vacuum emulsifying mixer machine consists of water and oil pot, Main emulsifying tank, vacuum system, tilting discharge system, hydraulic lifting system, mixing system, homogenizer system and heating/cooling system. It’s used to produce cream, lotion, paste, ointment, paste, conditioner, etc.

▸ The emulsifying pot lid adopts a hydraulic lifting system, easy to clean, the emulsifying pot can adopt tilt discharge.

▸ The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking adopted can avoid dust.

▸ PTFE scraping board cater to the body of blending groove and scrape out viscosity material on the boiler wall.

▸ Homogenizer is installed on the boiler bottom to increase motor power more thoroughly and strongly. During a few productions, it can exert the homogenizing effect fully.

▸Mightiness balance isotactic curve rotor is matched with the stator to realize liquid high-capability cut, rubbing, centrifugal to make sure exquisite and slick cream.

▸ Boiler body and pipe surface mirror polishing 300 mesh (sanitation grade) accord with Daily chemical and GMP regulation.

▸ SIEMENS frequency converter for speed adjustment of 0-3000 rpm, which can meet the production of different technology requirements.

▸ Burgmann mechanical sealing, good sealing effect, and long working life.
Material contact parts all use SUS316L stainless steel.

▸ The heating method mainly includes electric or steam heating for the customer’s choice.

▸ Advanced PLC touch screen control is optional.

Why choose this product?

Electronic control cabinet

Electronic control cabinet control mixing, heating, homogenizing functions. It adopts imported electric elements, French Schneider, Germany Siemens, Japan Omron, Panasonic to ensure good quality of the liquid mixer.
According to the customer’s requests and production request, it also could be customized to make as explosion-proof electrical cabinet.

Mixing part

Mixing part: Frame oar scraping blender with fixed oar
Material: SUS316L
The Agitator motor + reducer provides strong and stable power for the mixer.
Polytef wall scraper: Scraping off the materials that stick on pot wall, to make all materials mixing more evenly.
Adopts NSK bearings to ensure mixing stability and high quality.

Homogenizer part

Name: High shearing homogenizer
Material: SUS316L
Speed: 0-3600 rpm, adopts imported frequency inverter control.
Adopts Germany imported technology rotor and stator high shearing homogenizer, smooth emulsion to 2 μm, equipped seal two sides tungsten seal. water circulation cooling homogenizer.
